A very wise choice.Saving time & Saving cost

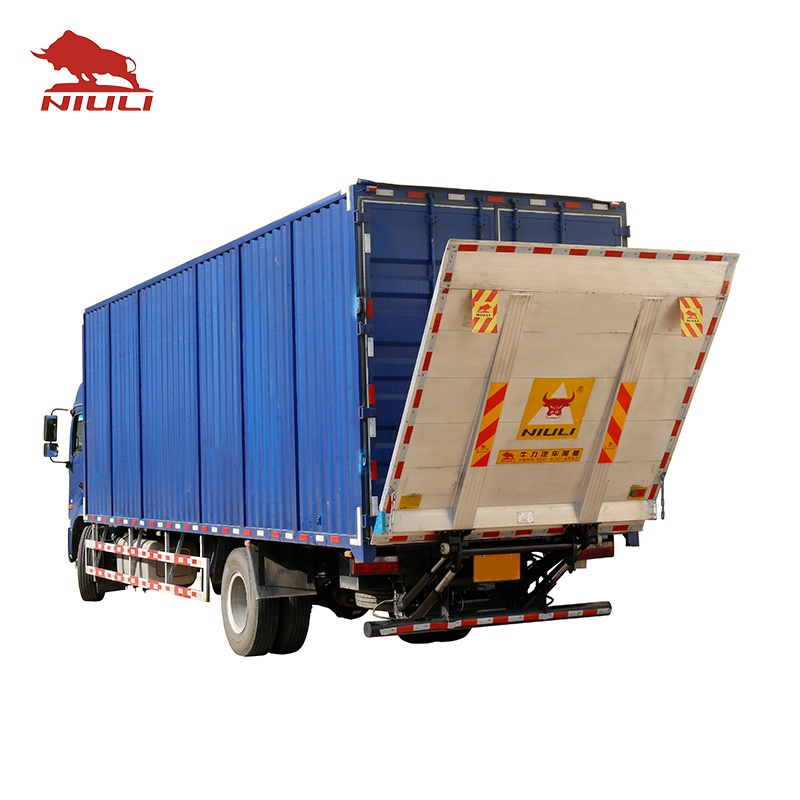

 | The tail Lift's hydraulic pumps , hydraulic cylinders , sealing , hydraulic tube and electric system are all imported from international brands , quality reliability ,performance excellence. |

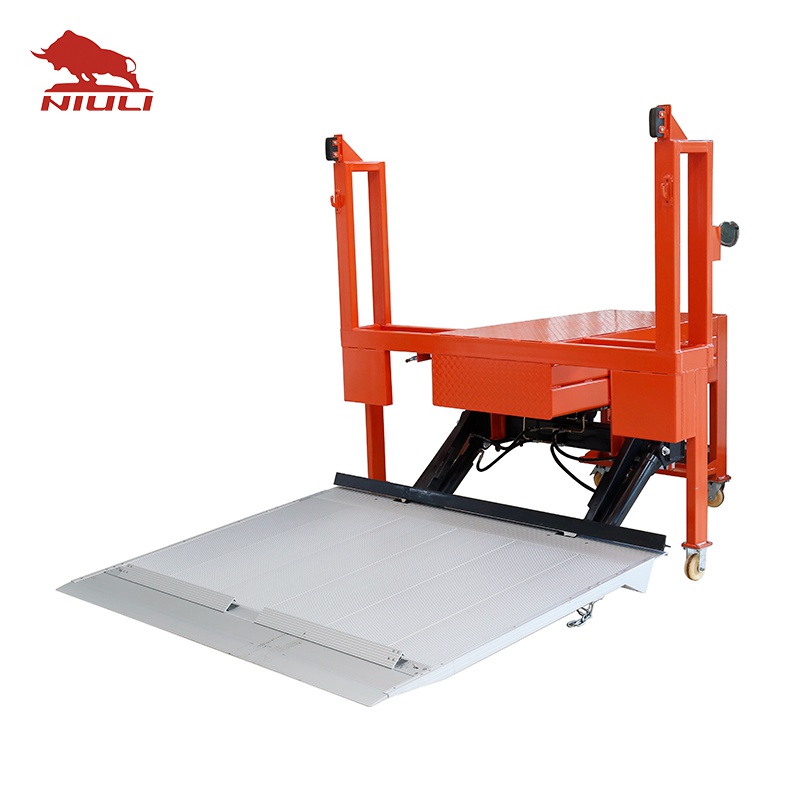

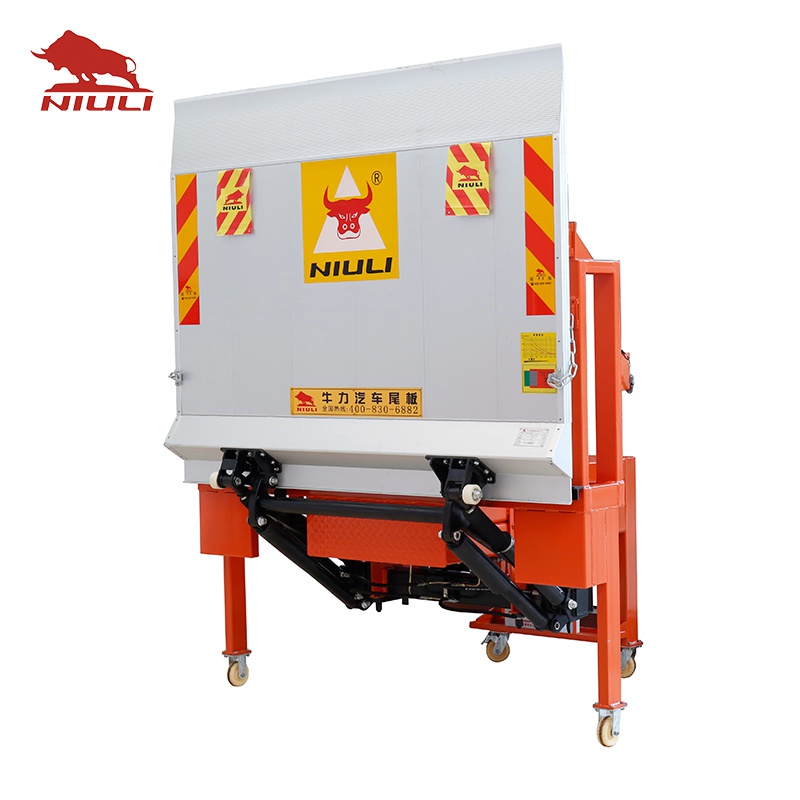

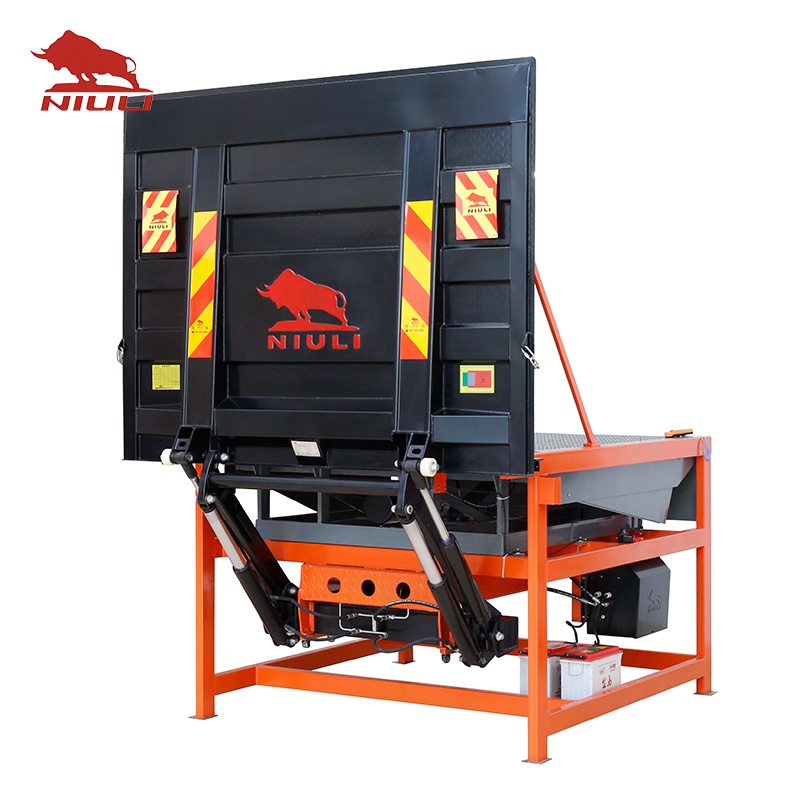

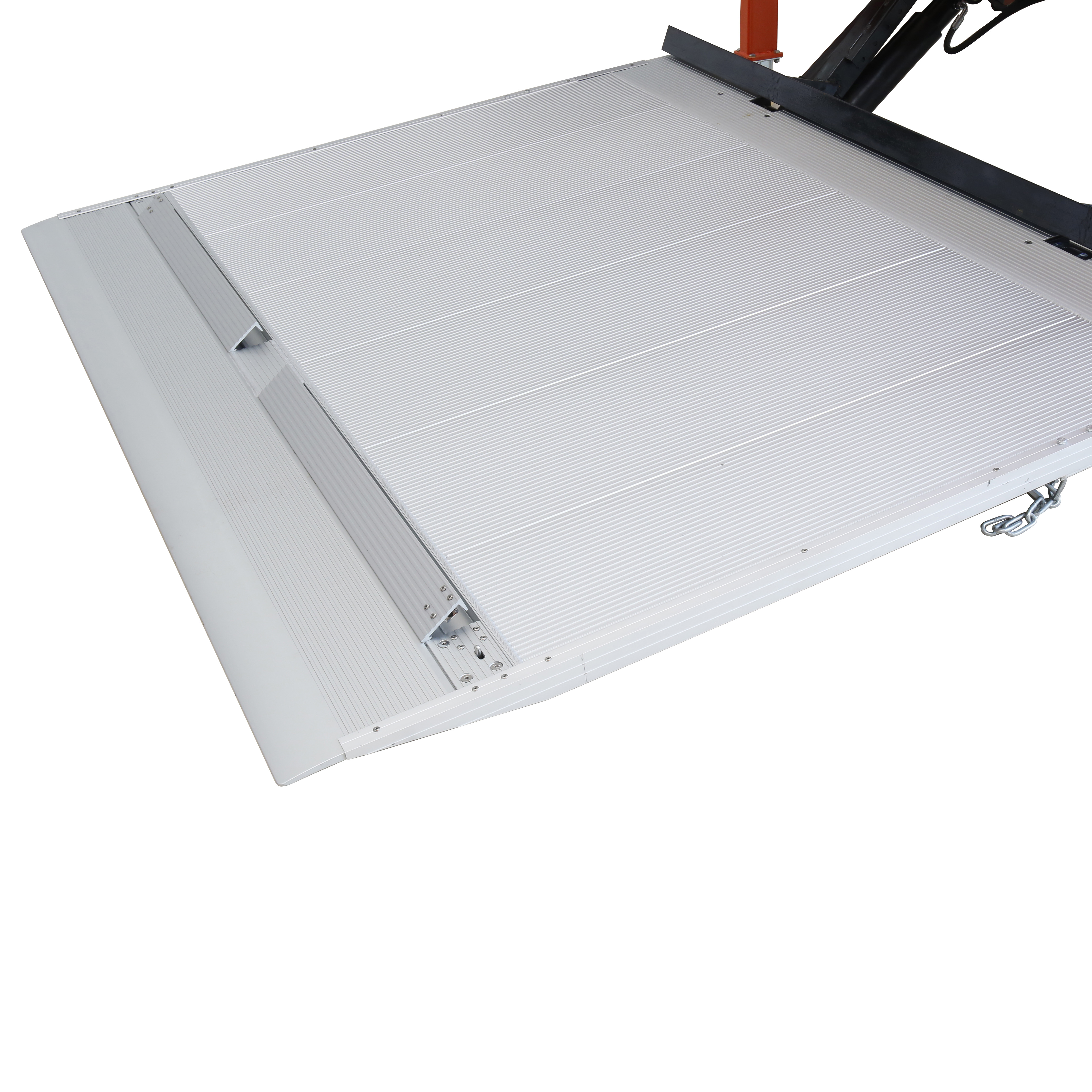

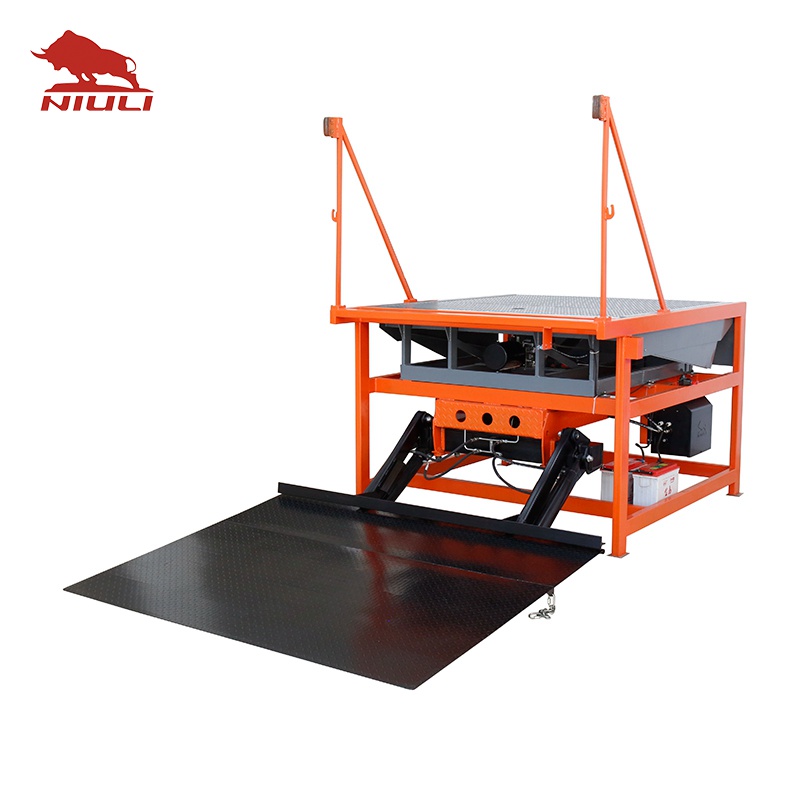

1.Steel or aluminium platforms in a variety of dimensions and options. 2.The tail lift with five cylinders, full automatic balance system, Hydraulic system has the intelligent memory function which make the operation more balanced and safe. 3.The tail Lifts have two sets of electric control systems to make operation easy. 4.The tail lift's hydraulic system is equipped with hydraulic safety device which prevents accidents being caused by failure operation. |  |

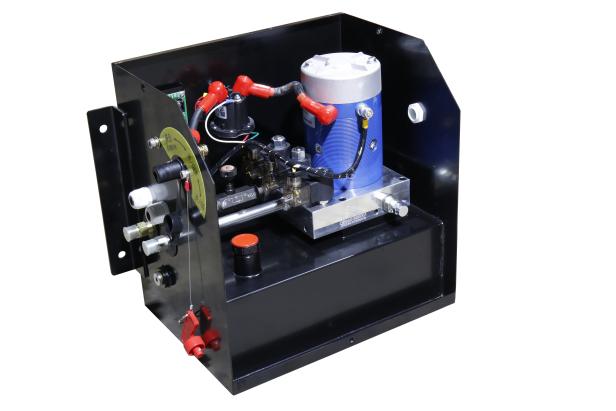

 | Our power packs are completely tested,adjusted and filled with oil and equipped with electrical controls.This helps to reduce the installation time and keeps it to a minimum.Use truck's battery,no need extra power. |
| Aluminum Tail Lift | NL-FP06/LA NL-FP05/LA NL-FP03/LA | NL-PP08/LA | NL-PP10/LA | NL-PP15/LA | NL-PP20/LA | NL-PP25/LA NL-PP30/LA | |
| Hydraulic Steel Tail Lift | NL-PP06/GA NL-PP05/GA NL-PP03/GA | NL-FP08/GA | NL-PF10/GA | NL-FP15/GA | NL-FP20GA | NL-PP25/GA NL-PP30/GA | |
| Platform Size(MM) width *height | W x H:1800x1800/1900x1800/2000x1800/2100x1800 2200x1800/2300x1800/2400x1800/2500x1800 | 1. Steel platform and aluminum Platform can be optional 2. Special platform can be customized according to customer's requirement. | |||||
| Panel Size | 2000x1800 | 2300x1800 | 2400x2000 | 2500x2300 | 2500x2300 | 2500x2300 | According to the company's international declaration scope requirements |

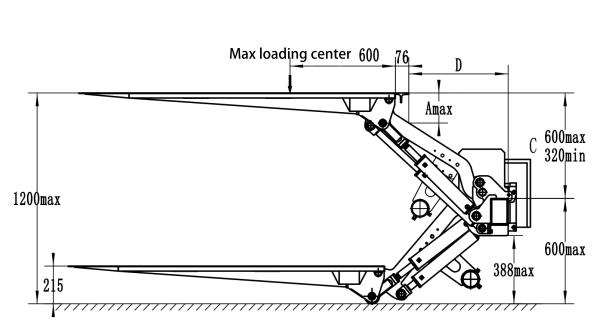

| Lifting Capacity (kg) | 300/500/ 600 | 750 | 1000 | 1500 | 2000 | 2500/3000 | 600mm from standard Load center |
| Dead Weight (kg) | 200 | 300 | 350 | 450 | 550 | 650 | Some differences due to different panel sizes |
| maximum value of Vehicle longitudinal length(MM) | 220 | 280 | 280 | 300 | 300 | 300 | Maximum value of vehicle length |
| maximum value of Vehicle longitudinal length(MM) | 0.75/1.1/1.6 | 1.6/2.0/2.5/3.0 | Customized to special requirements | ||||
| Frame arm length(mm) | 521.5/560/572 | 480/600/650/750/800 | 580/650/750/800/900 | 900/950/1000 | |||
| Frame inner width(mm) | 455 | 950 | 950 | 950 | 1010 | 1010 | |
| Applicable Carriage Ground Height(Mm)Height from vehicle (mm) | 800 | 1050 | 1050 | 1200 | 1500 | 1600 | |
| The installation distance from the rear of the truck to the spring seat(mm) | 465-485 | 500-600 | 650-750 | 700-800 | 800-900 | 900-1000 | |
| Inclination angle of the platform | -15°~90° | ||||||
| Power source | DC(12V、24V、48V、60V、72V)/100AH above | DC12V-24V/100AH-160AH | |||||
| The inclination angle between the working floor and the countertop | 5°-9° | ||||||
| System operation pressure | 10MPa-16MPa | ||||||
| Average Lifting speed (mm/s) | 60-80 | adjustable | |||||
| Open And Close Speed(Mm/Sec) | 8°-10° | ||||||
| Hydraulic Oil | 46# or 68#Antiwear hydraulic oil | Except for special environmental requirements | |||||
