Product Type: Hydraulic Dock Leveler
Load Capacity: 6000kg / 8000kg / 1000kg /12000kg / 15000kg
Standard Stroke: Upward 400 mm / Downward 300 mm (from horizontal level), adjustment range +400 / -300 mm
Typical Operating Stroke: ±300 mm
Platform Material: Steel Plate
Power Supply: 220V / 380V AC, 0.75 kW

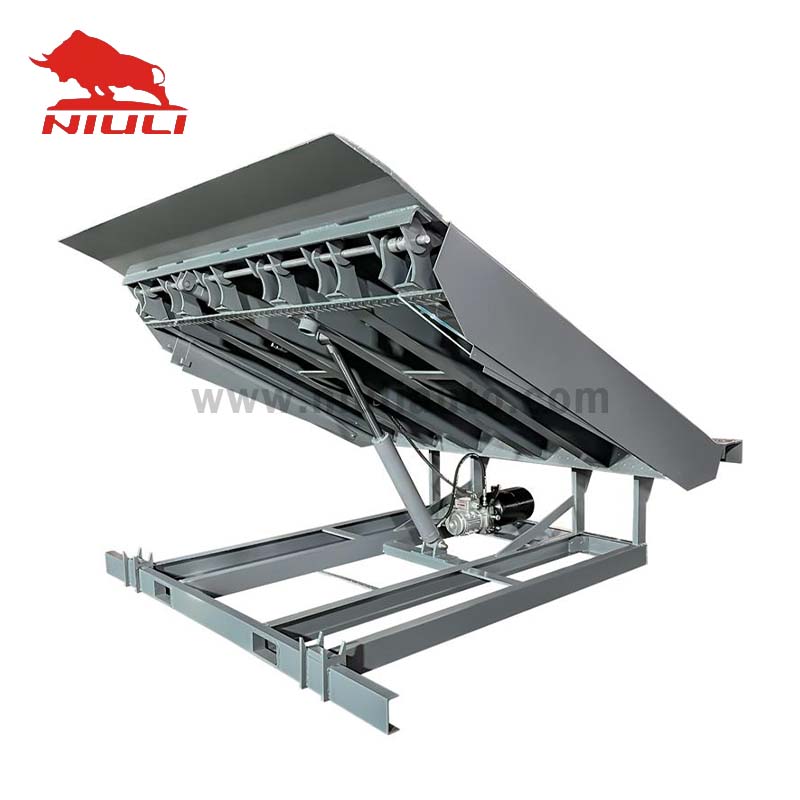

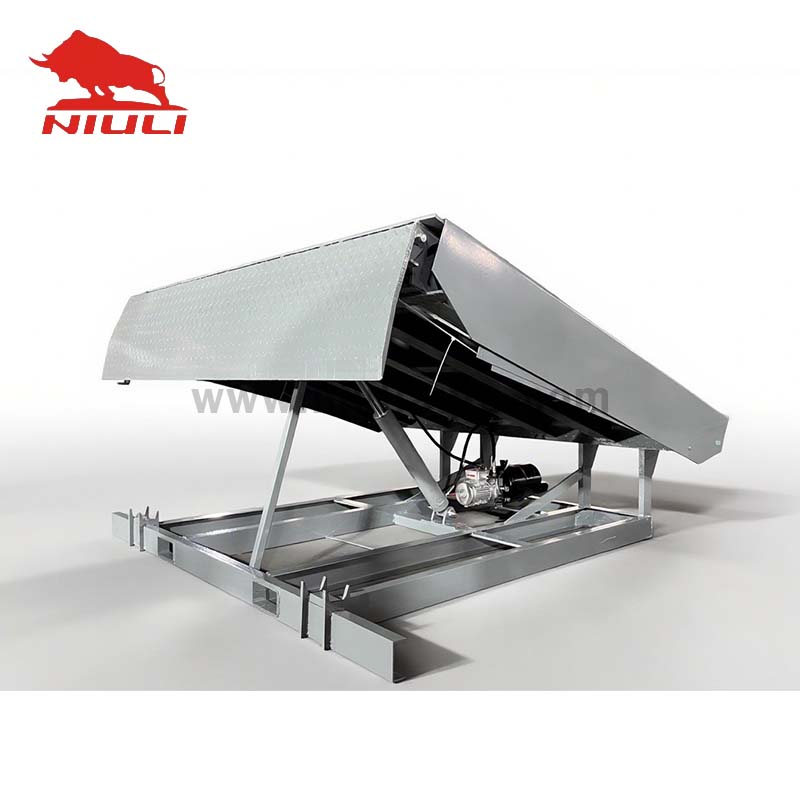

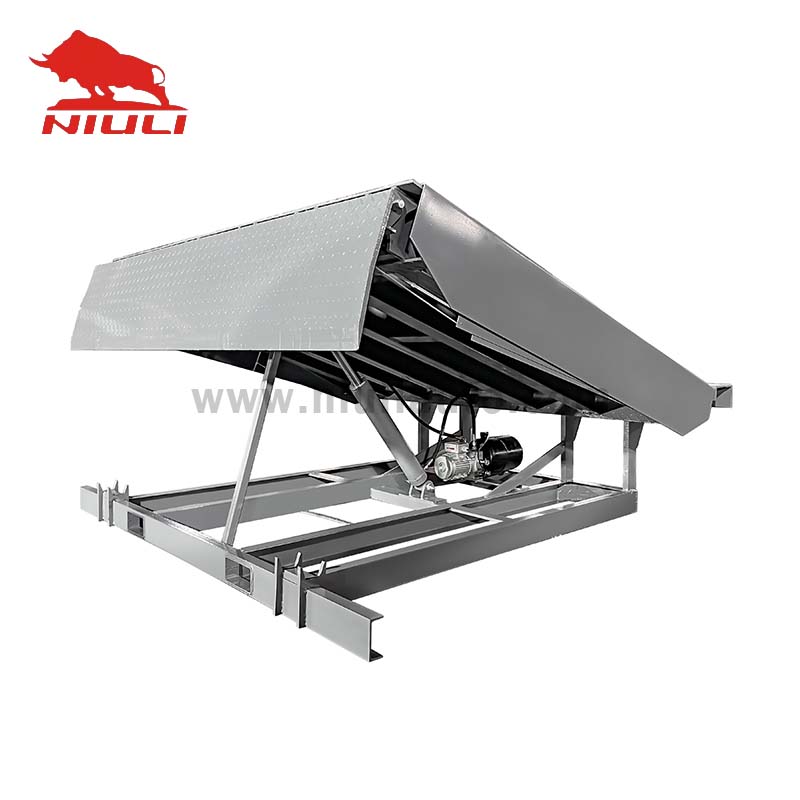

NIULI Hydraulic Dock Leveler
Product Specifications
1.Load-bearing capacity and durability :
Capacity: 6,000-15,000 kg
Structural materials: High-strength carbon steel/aluminum alloy, anti-slip checkered plate, thickened tongue plate
Lifespan and cycle: 10-15 years of lifespan
Impact resistance: No deformation when high-frequency forklifts pass through, and weld reinforcement.
2. Efficiency and adaptability (Solving height difference + raise productivity)
Height adjustment range: ±300 mm (covering different vehicle models: van/high-sided/refrigerated truck)
Tongue plate type: standard/telescopic (telescopic), suitable for short carriages/special parking Spaces
Lifting speed: Hydraulic system takes 10 to 15 seconds to reach the position。
3. Customized usage scenarios
We provide customized loading dock levelers for cold storage, old warehouse renovation, narrow space and chemical explosion-proof areas.
PARAMETER TABLE
Model
Capacity (kg)
Platform size (mm)
Lip board size (mm)
Distance (mm)
Motor power (mm)
Pit dimensions L×W×H (mm)
DCQ8-0.7
8000
2440x1830
400
+400-300
0.75
2600X1860X510
DCQ10-0.7
10000
2440x1830
400
+400-300
0.75
2600X1860X510
DCQ12-0.7
12000
2440x1830
400
+400-300
1.5
2600X1860X510
FAQ
Choosing the right equipment for your loading dock is a key decision that depends on your specific operational needs. Let’s break it down:
Dock Levelers are permanently installed and provide a stable platform for forklifts and personnel to transition safely between the transport vehicle and the loading dock. They are ideal for businesses with frequent use of forklifts and heavy materials.
Dock Plates & Dock Boards: Dock plates are portable and lightweight, typically made from aluminum, and are designed for light-duty equipment such as pallet jacks and dollies. If forklifts are not regularly used, a dock plate can be a cost-effective solution.

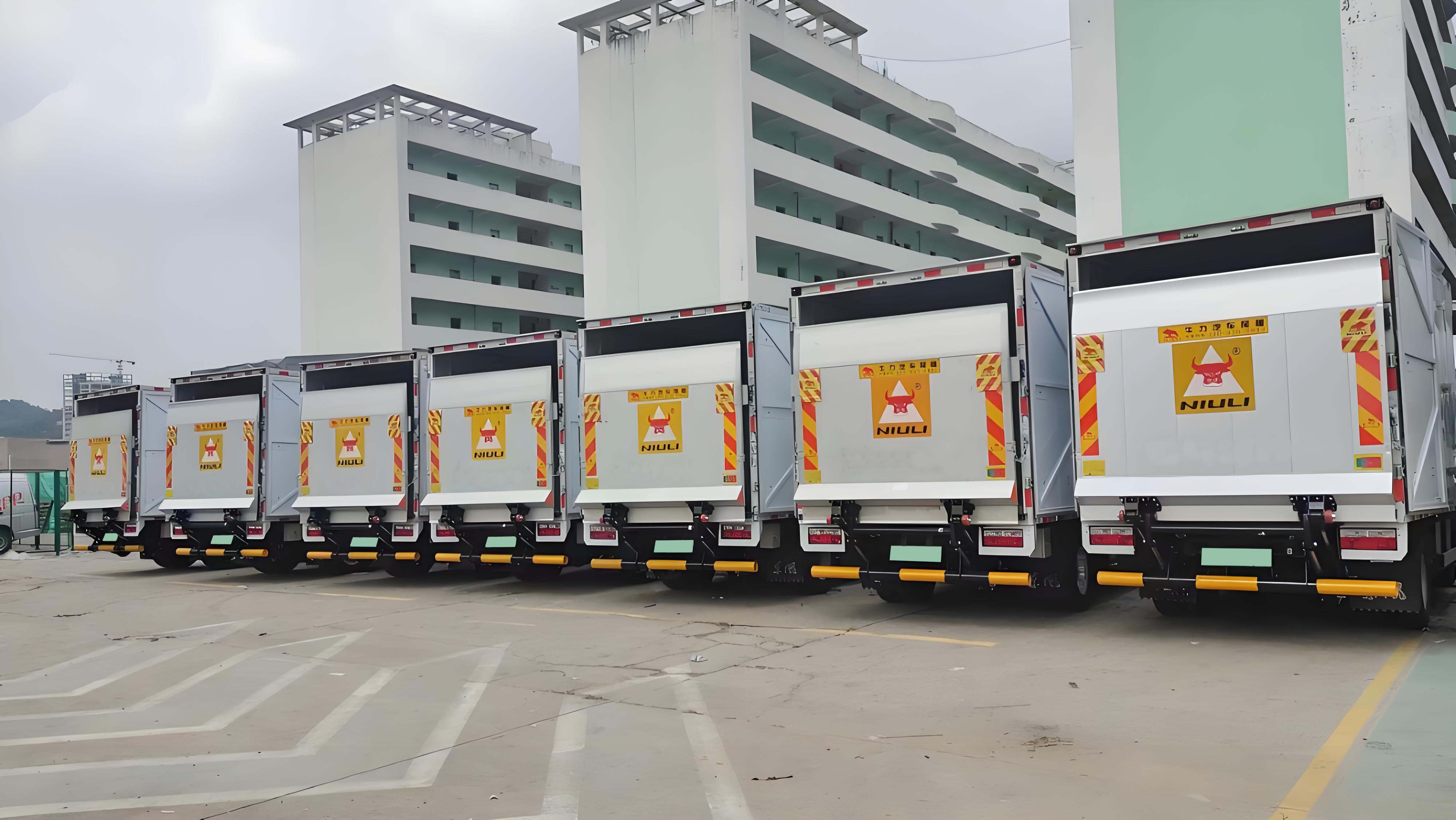

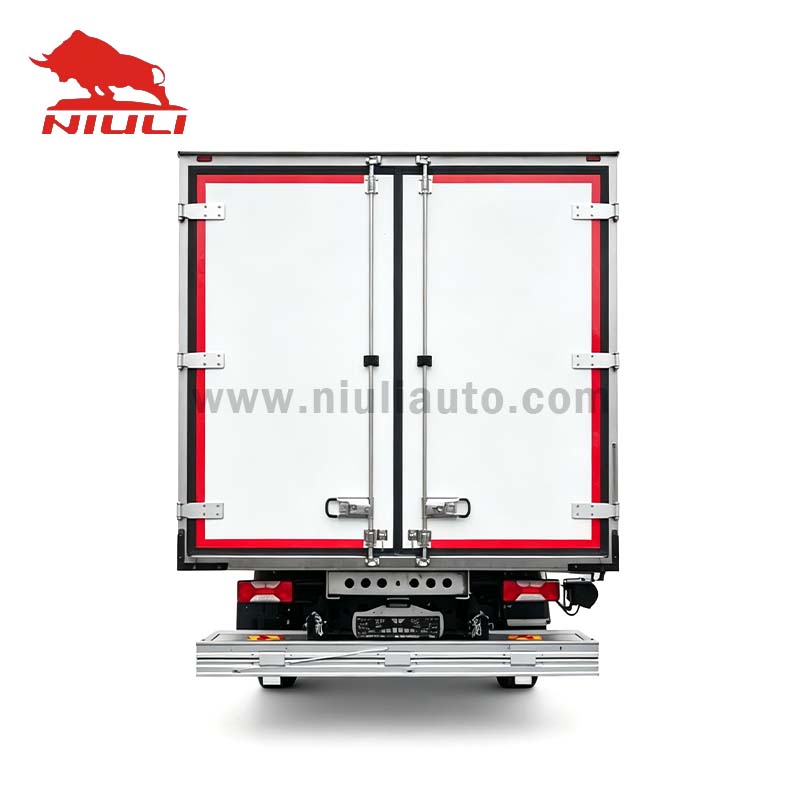

TAIL LIFT SHOWCASE
