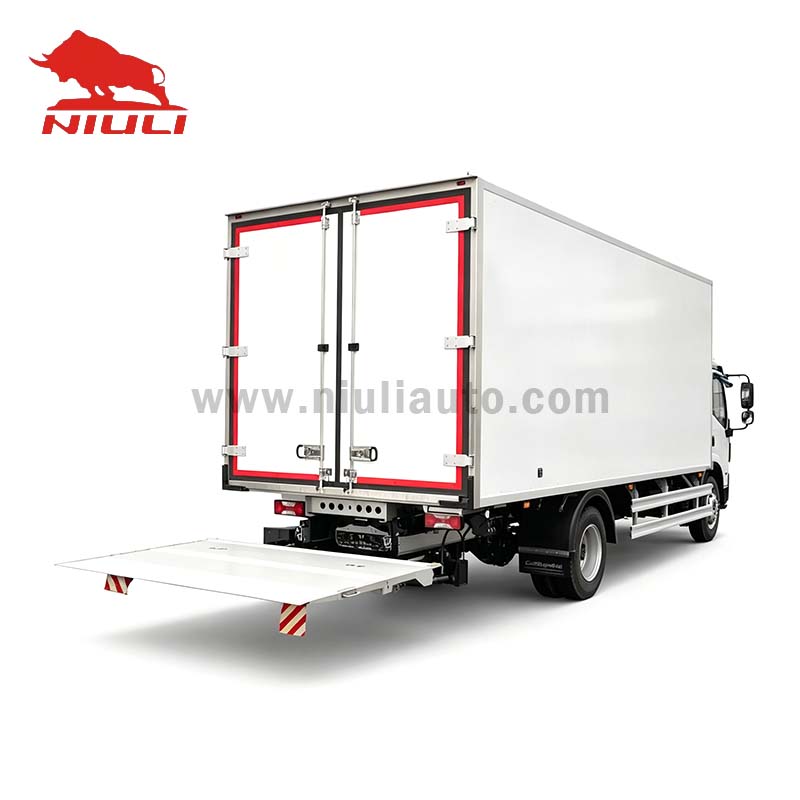

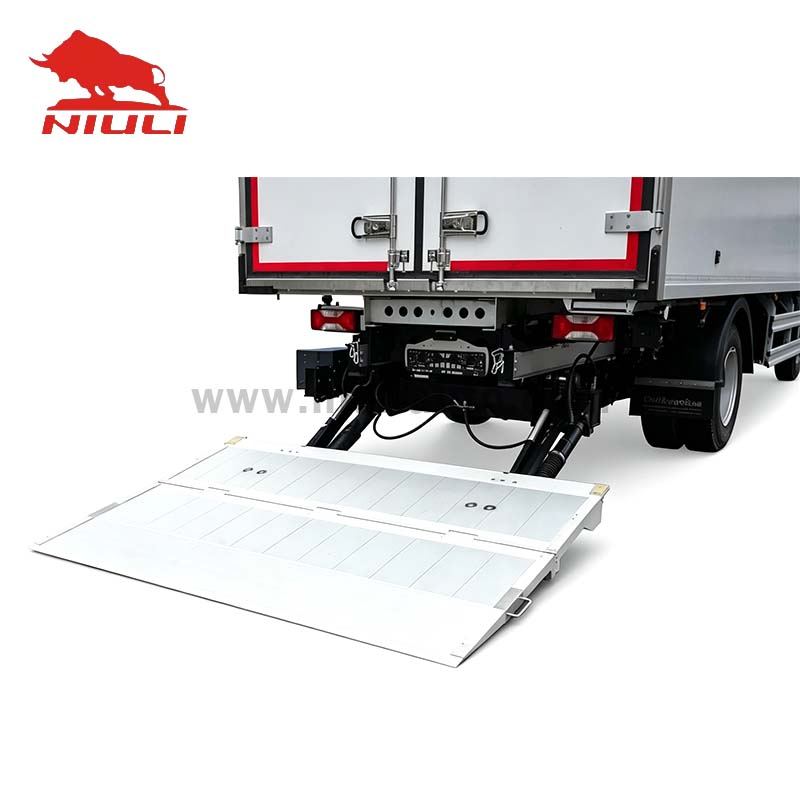

NIULI Retractable Hydraulic Tail Lift 1500kg-2000kg

There are four primary designs:

Cantilever: The most versatile lift, which folds against the rear and is ideal for general freight.

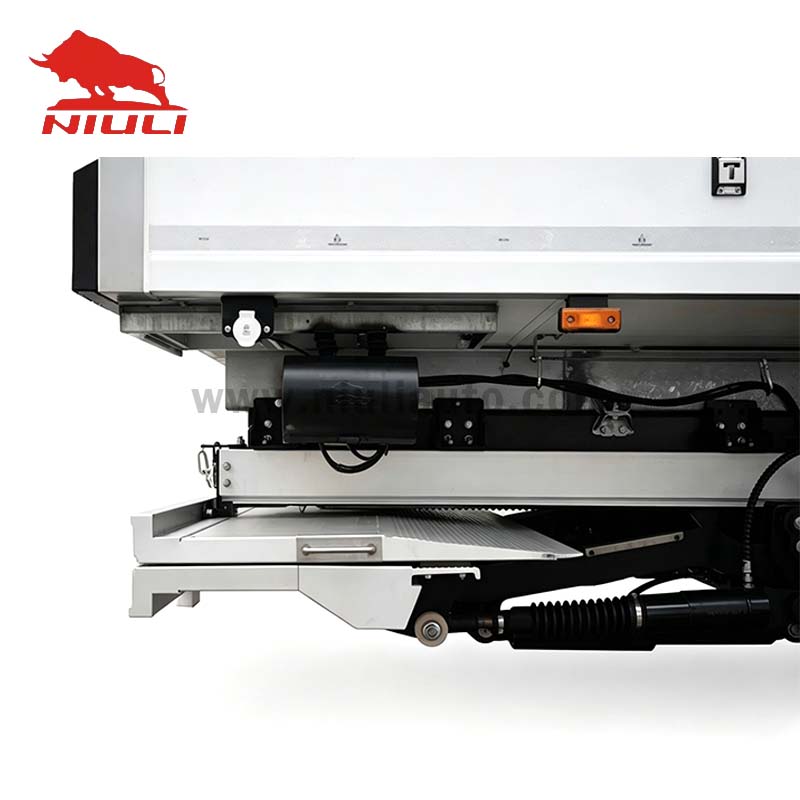

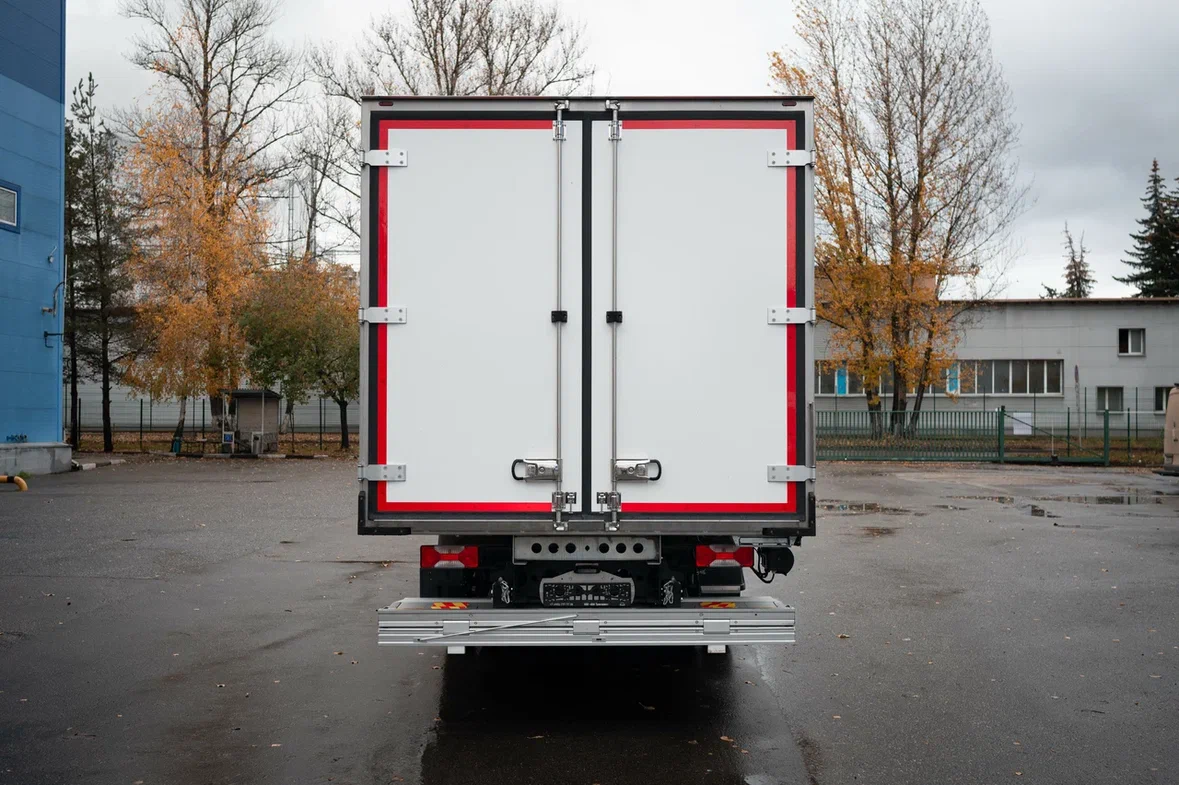

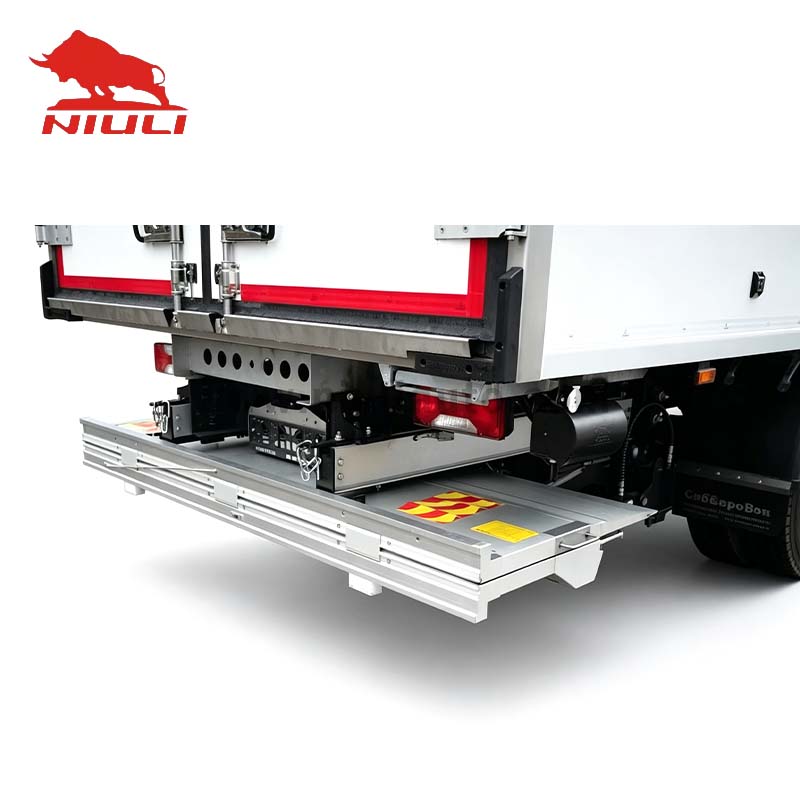

Retractable: Tucks horizontally under the chassis, keeping the rear doors accessible for frequent use.

Foldable (Tuckaway): Folds into sections and stores under the truck, saving space.

Column: Moves strictly up and down, suited for specialized applications with strict height requirements.

Vehicle Type: Different Types And Sizes Of Tail Lifts Are Suitable For Different Models.

Loading Requirements: Choose A Tail Lift With Appropriate Load Capacity According To The Weight Of The Cargo.

Frequency Of Use: It Is Recommended To Choose A Tail Lift With Higher Durability For Frequent Use.

Convenience Of Operation: Choose A Tail Lift That Is Simple To Operate And Easy To Maintain.

While the design can vary, most tail lifts rely on a hydraulic system to generate the necessary lifting force. Here's a simplified breakdown of the process:

1.Activation: The operator activates the tail lift using a control panel, which is typically located on the side of the vehicle or via a handheld remote.

2.Power Source: An electric motor, powered by the vehicle's battery, drives a hydraulic pump.

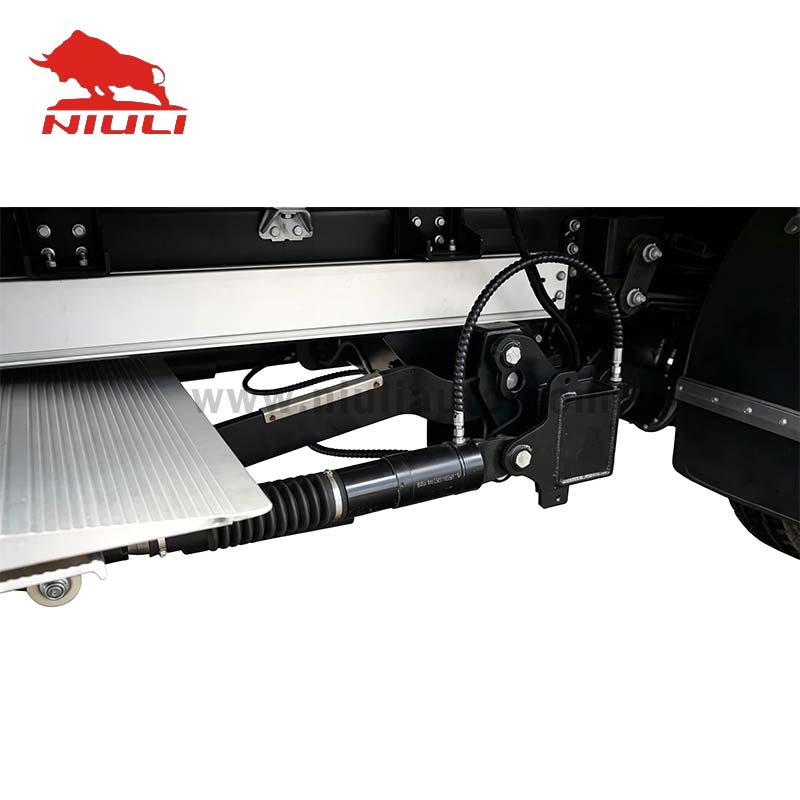

3.Hydraulic Pressure: The pump pushes hydraulic fluid into one or more cylinders. As the cylinders fill with fluid, they extend, causing the lift's arms to move and raise the platform.

4.Lowering the Platform: To lower the platform, a valve is opened to release the hydraulic fluid from the cylinders, allowing it to flow back into a reservoir. Gravity then gently brings the platform down in a controlled manner.

5.Tilting and Folding: Many models also include a tilting function, which allows the platform to be angled for easier loading and unloading on uneven surfaces. When not in use, the platform can be folded away and stowed, either vertically against the rear doors or tucked away underneath the vehicle's chassis.
