Box Truck With Tail Lift: Features, Benefits, And Use Cases

Shifting heavy goods from ground level to truck bed height—without a loading dock, a forklift, or a team of able-bodied workers—is one of the most persistent challenges in freight and delivery. A box truck with a tail lift solves that problem directly.

These vehicles have become a staple across the logistics, retail, and removal industries, offering a practical combination of enclosed cargo protection and powered loading capability. Whether a business is coordinating last-mile deliveries in a dense urban area or managing equipment transport across a regional network, the right tail lift truck can significantly reduce both physical strain and operational delays.

This guide covers everything worth knowing about box trucks with tail lifts—from how they work and the different configurations available, to practical use cases and a comparison table to help identify the right fit for specific operational needs.

Box Truck With Tail Lift: Understanding the Core Setup

A box truck with tail lift—sometimes called a cube van or straight truck—features a fully enclosed rectangular cargo area mounted on a chassis. Unlike flatbed trucks or open-sided vehicles, the box design protects cargo from weather, theft, and physical damage during transit.

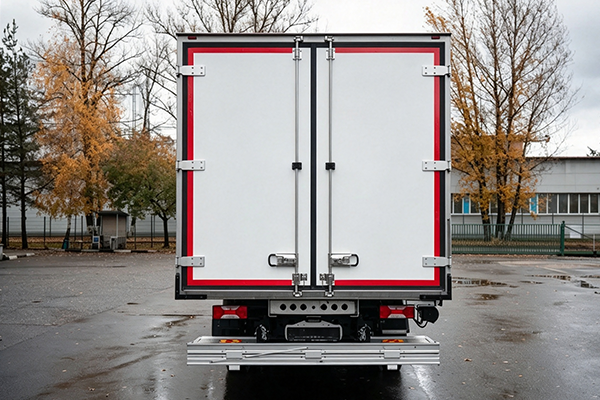

When fitted with a tail lift, the truck gains a hydraulic or electric platform mounted at the rear. This platform can be lowered to ground level, loaded with goods or equipment, and raised flush with the truck floor—eliminating the need for ramps, forklifts, or manual lifting.

The combination is particularly valuable in urban delivery settings, where loading docks are often unavailable and deliveries must be made directly to storefronts, offices, or residential properties.

Trucks With Tail Lifts: Types and Configurations

Not all tail lift systems are the same. The appropriate configuration depends on the vehicle's payload capacity, the frequency of use, and the type of goods being moved.

Column (Cantilever) Tail Lifts

Column tail lifts fold flat underneath the truck's rear when not in use. They're the most common type fitted to box trucks and are well-suited to general freight and retail delivery. The platform extends outward and lowers smoothly, making them practical for both palletized goods and loose cargo.

Tuck-Under Tail Lifts

Tuck-under lifts slide beneath the truck body when stowed, keeping the rear doors fully accessible. These are a popular choice when the truck needs to reverse up to a dock frequently, as the lift doesn't obstruct the loading bay.

Slider Tail Lifts

Slider lifts move horizontally along rails before lowering. They offer a wider platform footprint, which makes them a strong option for tail lift trucks handling oversized or irregularly shaped freight.

Barn Door vs. Roller Shutter Compatibility

Tail lift trucks come with either barn-style rear doors or roller shutters. Roller shutters are generally preferred in urban delivery operations, as they allow the doors to remain open while the lift is in use without the doors swinging into surrounding traffic or pedestrians.

Tail Lift Truck Applications Across Industries

The versatility of tail lift trucks has made them a fixture across several sectors. Below are the most common operational contexts where these vehicles deliver measurable value.

Retail and FMCG Delivery
High-volume retail supply chains rely on tail lift trucks to service locations without rear loading infrastructure. Supermarkets, convenience stores, and pharmacies all receive frequent deliveries from vehicles where the tail lift substitutes for a fixed dock.

Removals and Relocation
Removal companies depend on tail lifts to handle furniture, appliances, and bulky household goods—items that are impractical to carry down ramps manually, particularly in buildings without goods lifts.

Medical and Healthcare Equipment
Hospitals and care facilities regularly receive large, sensitive equipment such as imaging machines, adjustable beds, and mobility aids. Tail lift trucks allow controlled, secure unloading that reduces the risk of equipment damage.

Trade and Construction Supply
Building materials, plant machinery, and tools often exceed what a standard van can carry or safely unload. A box truck with a tail lift allows tradespeople and site managers to receive deliveries directly on-site without needing additional mechanical handling equipment.

Event and Exhibition Logistics
Exhibition stands, AV equipment, and staging infrastructure need careful handling. Tail lift trucks are routinely hired for event logistics because they offer both cargo protection during transit and controlled ground-level unloading at venues.

Box Truck With Tail Lift: Comparison Table by Use Case

Key Factors to Evaluate Before Choosing a Tail Lift Truck

Selecting the right configuration requires looking beyond the lift type. Several operational variables directly influence which vehicle setup performs best.

Payload Capacity and GVW (Gross Vehicle Weight)

The tail lift itself adds weight to the vehicle—typically between 150 kg and 400 kg depending on the system. This reduces the net payload available for cargo. Operators need to account for this when matching the truck's GVW to the expected load.

Power Source: Hydraulic vs. Electric

Hydraulic tail lifts are robust and well-suited to high-frequency, heavy-duty use. Electric lifts tend to be quieter and more efficient for lighter loads and urban environments with noise restrictions—an increasingly relevant consideration in city centre delivery zones.

Platform Size and Surface

Platform dimensions matter most when regularly handling pallets or wide equipment. A platform that's too narrow for a standard Euro pallet (800 mm × 1,200 mm) will create operational problems regardless of lift capacity. Non-slip surfaces and edge guards are worth specifying for safety compliance.

Regulatory and Licence Requirements

In many jurisdictions, operating a truck with a tail lift above a certain GVW requires a Category C driving licence. Operators should verify local licensing requirements before committing to a specific vehicle weight class.

Hiring vs. Purchasing a Box Truck With Tail Lift

For businesses with seasonal or irregular delivery demands, hiring a truck with tail lift often makes more operational sense than outright purchase. Short-term hire gives access to the right vehicle size for each job without the overhead of maintenance, insurance, and storage.

Businesses with consistent, high-frequency delivery routes—particularly those running daily urban rounds—typically find that ownership delivers better cost control over time, especially when factoring in the depreciation of a well-maintained vehicle fleet.

Fleet managers should also consider leasing as a middle path, particularly when operational requirements may scale or shift within a three-to-five year horizon.

Safety Standards and Operator Training for Tail Lift Trucks

Tail lift trucks are subject to specific safety regulations in most markets. In the United Kingdom, for instance, the Provision and Use of Work Equipment Regulations (PUWER) and the Lifting Operations and Lifting Equipment Regulations (LOER) both apply to tail lift systems.

Routine inspection and servicing of the lift mechanism is not optional—it's a legal obligation. Most manufacturers recommend six-monthly service intervals, with daily pre-use checks conducted by the operator.

Operator training should cover load distribution on the platform, safe lowering procedures on uneven ground, and emergency stop protocols. Untrained use of a tail lift is one of the more common causes of workplace injury in the logistics sector.

Making the Right Choice for Your Operation

A box truck with a tail lift removes one of the most consistent friction points in freight and delivery: getting goods safely from the vehicle to the ground. The right tail lift configuration depends on load weight, delivery frequency, urban vs. rural routes, and the type of cargo being carried.

Tuck-under lifts suit dock-facing retail operations. Column lifts offer broad versatility for removals and trade supply. Slider lifts handle oversized freight most effectively. Matching the lift type to the operational context—rather than defaulting to the cheapest option—is what separates a productive vehicle spec from one that creates daily workarounds.

For businesses evaluating tail lift trucks, starting with a clear picture of maximum payload, delivery environment, and driver licensing is the fastest route to a sound decision.
