Trucks with Tail Lifts: The Complete Guide for Businesses

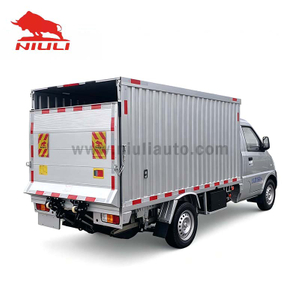

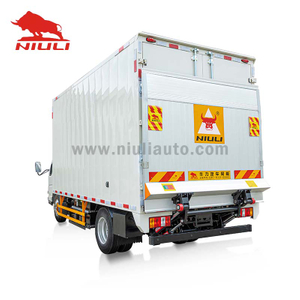

A truck with a tail lift is a commercial vehicle fitted with a hydraulic or mechanical platform at the rear, designed to raise and lower heavy loads between the ground and the truck's cargo floor. Tail lift trucks are widely used across logistics, retail, construction, and healthcare sectors to reduce manual handling, speed up deliveries, and improve workplace safety.

Tail lift trucks are available in a range of sizes—from compact vans carrying light freight to heavy goods vehicles (HGVs) handling multi-tonne loads. Choosing the right configuration can dramatically improve operational efficiency.

How Does a Truck Tail Lift Work?

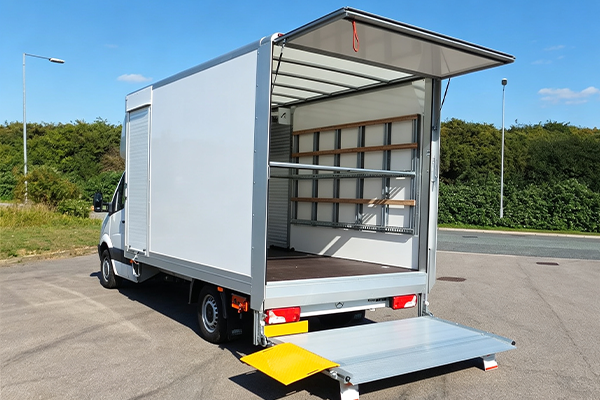

A truck tail lift operates through a platform mounted to the rear of the vehicle, which folds flat during transit and unfolds at the delivery point. When activated, the platform lowers to ground level, allowing operators to roll or place cargo onto it. The lift then raises the load up to the vehicle floor height, making it easy to move goods into the cargo area.

Most modern truck tail lifts are electrically powered and hydraulically operated. The hydraulic system uses pressurized fluid to generate the force needed to lift heavy loads smoothly and safely. Some units are rated to handle up to 2,500 kg, making them practical for demanding commercial use.

What Are the Main Types of Truck Tail Lifts?

There are several tail lift configurations, each suited to different loading environments and cargo types. The table below outlines the most common options:

Selecting the right type depends on your vehicle size, loading dock access, cargo weight, and how frequently the tail lift will be used.

Hydraulic Tail Lift Trucks: Performance and Reliability

A hydraulic tail lift truck relies on a closed-loop hydraulic circuit to power platform movement. The system typically consists of a hydraulic pump, cylinder, fluid reservoir, and control valve. When the operator engages the controls, the pump pressurizes hydraulic fluid, which drives the cylinder and moves the platform.

Hydraulic systems are preferred over purely mechanical alternatives for several reasons:

· Load capacity: Hydraulic systems can handle significantly heavier loads with minimal effort from the operator.

· Smooth operation: The fluid-driven mechanism provides consistent, controlled movement even under maximum load.

· Durability: With proper maintenance, hydraulic tail lift systems can remain operational for many years in high-frequency use environments.

· Safety: Most hydraulic units include built-in pressure relief valves and automatic lowering mechanisms to prevent accidents during power failure.

Choosing the Right Truck Tail Lift for Your Operations

The right truck tail lift depends on a combination of operational, physical, and regulatory factors. Here is a practical framework for making the right choice:

Choose a cantilever tail lift if your deliveries involve large, irregularly shaped loads and you have sufficient rear clearance at loading points.

Choose a tuck-away tail lift if your trucks operate in urban environments where space is tight and a compact, low-profile system is a priority.

Choose a slider tail lift if your vehicles regularly back up to loading docks where a platform protruding beyond the bumper would cause clearance issues.

Choose a hydraulic system over a manual alternative if your load volumes are high, loads are heavy, or operator fatigue and injury risk are a concern.

Fleet managers should also factor in the total payload capacity of the truck itself. Adding a tail lift increases the vehicle's kerb weight, which reduces the available payload. This trade-off must be accounted for when specifying vehicles and managing load compliance.

The Bottom Line on Tail Lift Trucks

Trucks fitted with tail lifts are a practical, safety-driven solution for businesses that regularly move heavy or bulky goods. From compact urban vans to full-size hydraulic tail lift trucks built for multi-tonne freight, there is a configuration to suit virtually every logistics operation. Prioritizing the right lift type, maintaining hydraulic systems consistently, and ensuring operators are trained and compliant with relevant regulations will keep your fleet running safely and efficiently
