Truck Liftgate Types: A Buyer's Guide

Loading and unloading heavy cargo without a dock or forklift is one of the most common challenges in commercial transport. That's where rear-mounted lifting platforms come in. A tail lift is a hydraulic or mechanical device fitted to the rear of a vehicle that raises and lowers cargo between ground level and the load bed, and it has become standard equipment across delivery vans, box trucks, and heavy freight vehicles.

Not all lifting platforms work the same way, though. Depending on the vehicle, load size, and operating environment, a fleet might need a different mechanical design entirely. This guide breaks down the main types available, compares their strengths in a side-by-side table, and offers practical guidance for matching the right option to a specific vehicle and workload.

Cantilever Lifting Platforms on Commercial Vehicles

Before comparing designs, it helps to understand what these platforms have in common. A truck tail lift typically consists of a hydraulic power unit, a set of lifting arms, and a platform that folds or slides into position. The operator controls the movement using a switch or remote, raising the platform to bed height for loading and lowering it to ground level for unloading. According to NIULI, a manufacturer with 26 years of experience producing this equipment, lifting capacities across the industry range from 500kg for light parcel vans up to 50,00kg for heavy freight and construction applications.

The mechanical design behind each platform determines how it stores, how much weight it handles, and how well it suits a particular vehicle body style.

Retractable and Column-Style Platforms

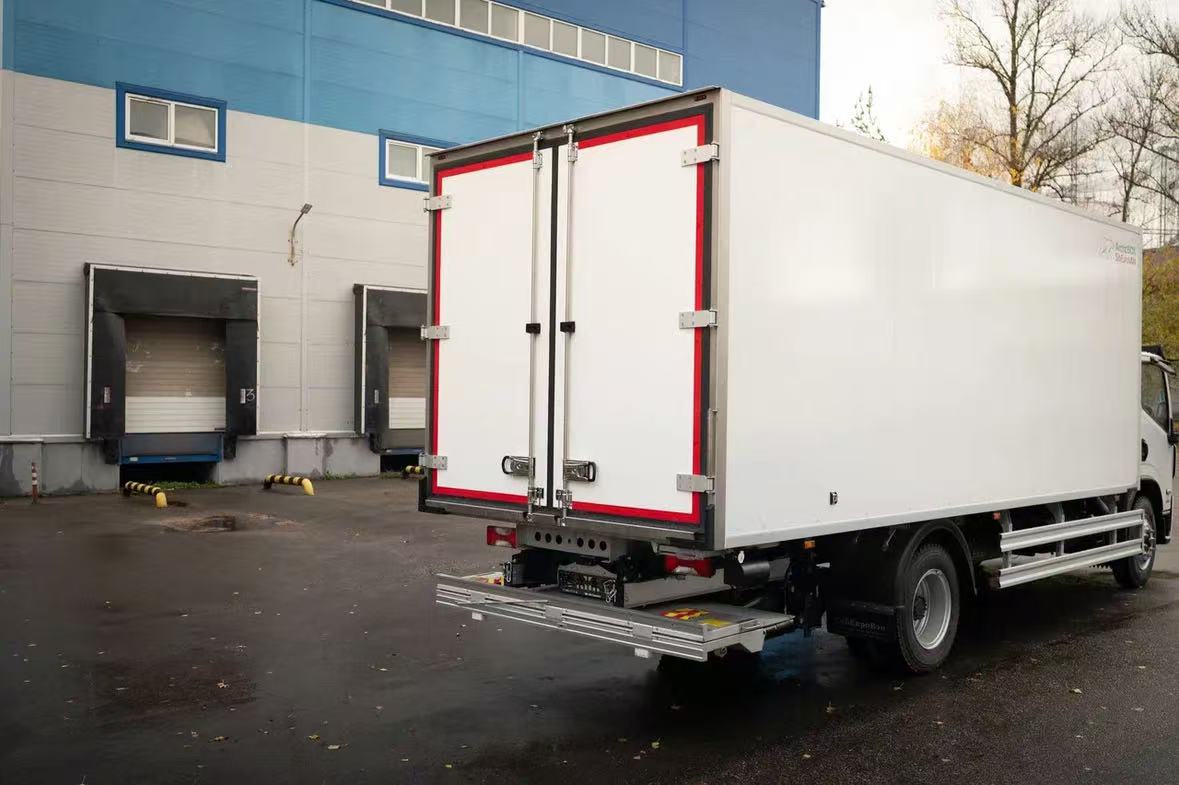

Retractable platforms stow away underneath the vehicle chassis when not in use, which keeps the rear doors and load bed completely clear. This design works well for dock loading, where the platform needs to sit flush with a raised loading bay, and it's a popular choice for urban delivery fleets that move between docks and street-level drops throughout the day.

Column-style platforms operate differently. Instead of folding or sliding under the vehicle, they use vertical columns mounted at the rear corners to lift the platform straight up and down. This structure distributes weight evenly across the columns, which makes it a strong option for heavier, bulkier loads that need a stable lifting path rather than a compact stowed position.

Folding Platforms for Space-Constrained Fleets

Folding designs split the platform into sections that fold flat against the rear of the vehicle when not in use. Because the assembly hangs on the outside rather than tucking underneath, it's often lighter and simpler to maintain than a retractable system. A tail lift built this way suits smaller vans and light trucks where minimizing weight and preserving ground clearance matter more than concealment.

The tradeoff is exterior visibility. Since the folded platform remains on the outside of the vehicle, it slightly reduces rear approach angles and can affect the vehicle's overall length when folded.

Cantilever Design: Built for Heavy-Duty Cargo

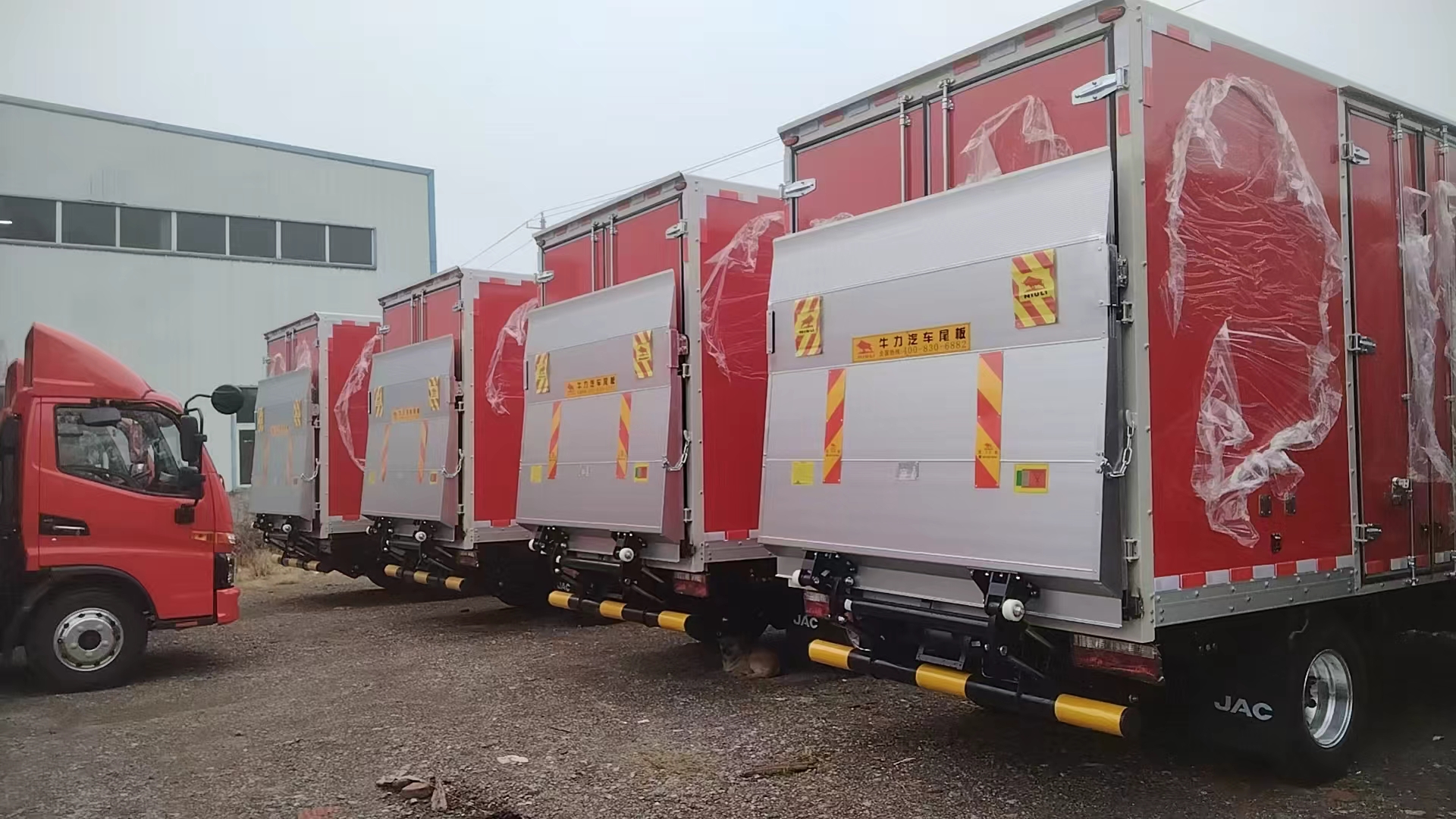

Among the heavy-duty options, the cantilever design stands out for handling substantial loads without needing a fully enclosed housing. A cantilever tail lift extends the platform outward from a pivot point, using a lever arm rather than a column or retracting frame to bear the weight. Forged lever arms, in particular, add durability under repeated heavy use, since the forging process produces a denser, more fatigue-resistant structure than cast components.

This configuration tends to appear on freight trucks, construction logistics vehicles, and cold chain transport, where the cargo is heavier and loading cycles happen frequently throughout the day.

Comparing the Main Lift Types

Matching the Right Platform to Your Fleet

Choosing between these designs comes down to three factors: the vehicle body style, the typical cargo weight, and how often the platform will be used in a single day. A delivery van making dozens of stops benefits from a lighter folding or retractable setup, while a heavy freight truck tail lift needs the load-bearing strength that a column or cantilever design provides.

It's also worth considering maintenance. Systems with fewer moving parts and simpler hydraulic circuits, such as folding platforms, tend to need less frequent servicing. Heavier-duty systems, by contrast, justify the added maintenance because they're built to endure higher-stress cycles without failure.

Frequently Asked Questions

What weight range do most commercial lifting platforms cover?
Most platforms cover a wide span, from around 500kg for light delivery vans to 5,000kg for heavy freight and construction vehicles, depending on the mechanical design.

Is a folding platform less durable than a retractable one?
Not necessarily. Folding platforms use fewer components, which can mean fewer failure points, but retractable systems offer better protection since the mechanism stows fully under the vehicle.

Which design suits cold chain or construction logistics?
Heavy-duty cantilever designs are generally preferred for cold chain and construction logistics because they support higher weight capacities and frequent daily use.

Can these platforms be customized for non-standard vehicles?
Yes. Manufacturers commonly offer custom builds on proven platforms, allowing a fleet to get a tailored fit without relying on untested designs.

How does maintenance differ between the designs?
Simpler folding systems typically require less frequent servicing, while heavier column and cantilever systems need more regular checks due to the higher loads they carry.

Making the Final Call

Every fleet has different priorities, whether that's minimizing weight, maximizing load capacity, or fitting a specific vehicle body style. In short, a tail lift is the rear-mounted platform that moves cargo between ground level and the load bed, a retractable or column design suits dock loading and heavier stable loads, a folding platform favors lighter vans with space constraints, and a cantilever tail lift handles the heaviest, most frequent-use freight applications. Matching the mechanical design to the actual workload, rather than defaulting to the most common option, is what keeps loading operations efficient and equipment running reliably for years.
