The Mechanics Behind Truck Tail Lifts, Explained

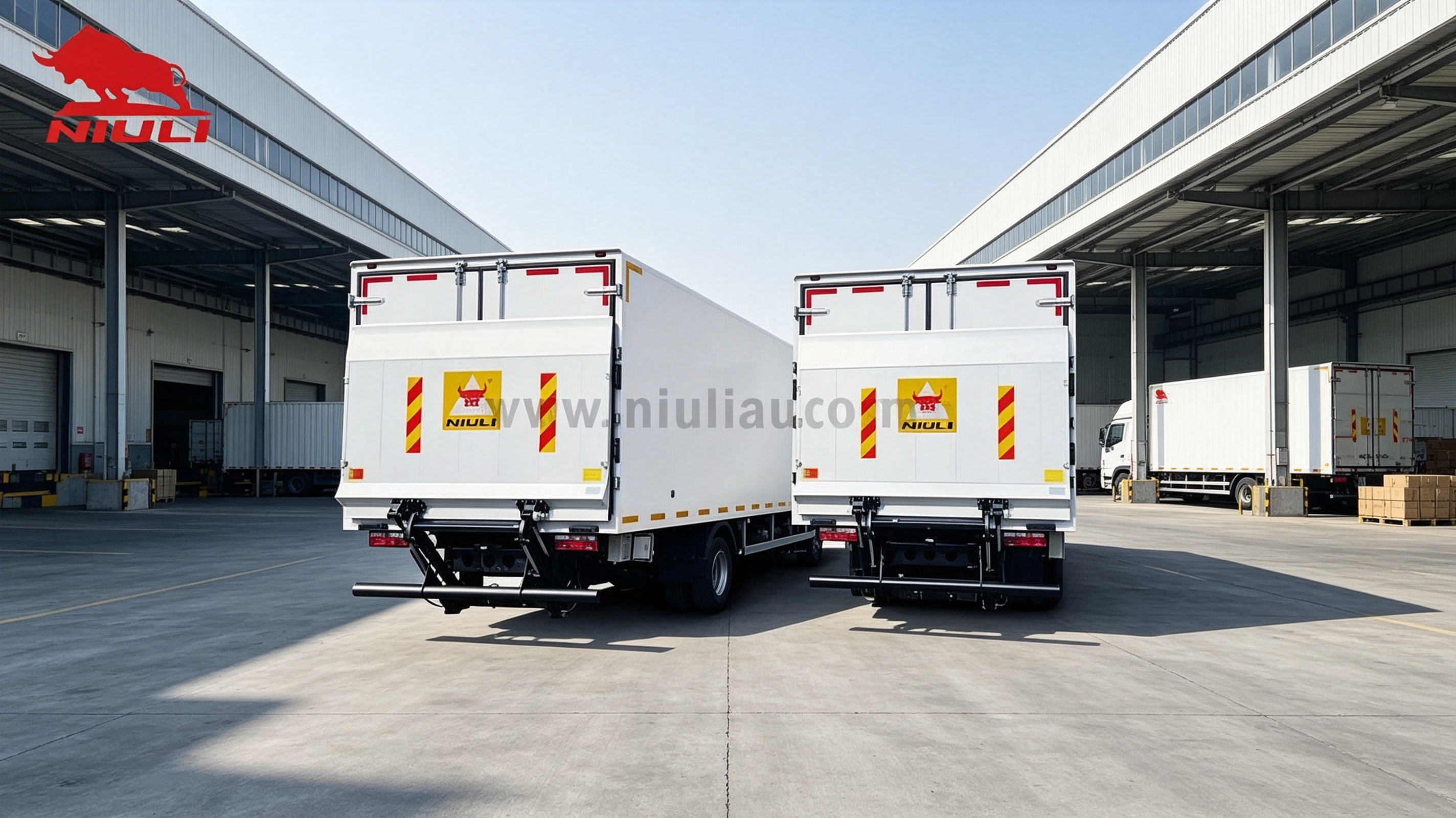

A truck tail lift raises and lowers a hydraulic platform at the rear of a vehicle, moving heavy cargo between ground level and the cargo floor. A hydraulic pump pushes fluid into cylinders, extending pistons that drive the lifting arms, while a control unit lets the operator raise, lower, and tilt the platform safely.

Loading heavy freight without a dock, forklift, or extra crew is one of the toughest daily hurdles in logistics. Tail lifts solve it directly. These hydraulic platforms bolt onto the back of a commercial vehicle and handle the lifting for you, cutting manual strain and speeding up every delivery.

This guide breaks down the mechanics in plain terms. You'll learn what happens inside the system when the platform moves, the main types available, and what to look for when choosing a supplier. By the end, you'll understand exactly how these machines turn a difficult loading job into a smooth, repeatable process.

The Core Mechanism That Moves the Platform

At its heart, a tail lift is a hydraulic system. The principle is simple: liquid can't be compressed, so pressure applied at one point transfers through the fluid to another point with force.

Here's the chain of events when an operator presses the "up" button:

1. An electric motor, powered by the vehicle battery, drives a hydraulic pump.

2. The pump forces hydraulic fluid out of a reservoir and into the cylinders.

3. Pressurized fluid pushes the pistons inside those cylinders outward.

4. The extending pistons move the lifting arms, which raise the platform.

Lowering the platform works differently. Instead of pumping fluid in, a control valve releases fluid back into the reservoir. Gravity and the load's weight bring the platform down in a slow, controlled way. A tilt function then folds or angles the platform so cargo can roll off onto the ground.

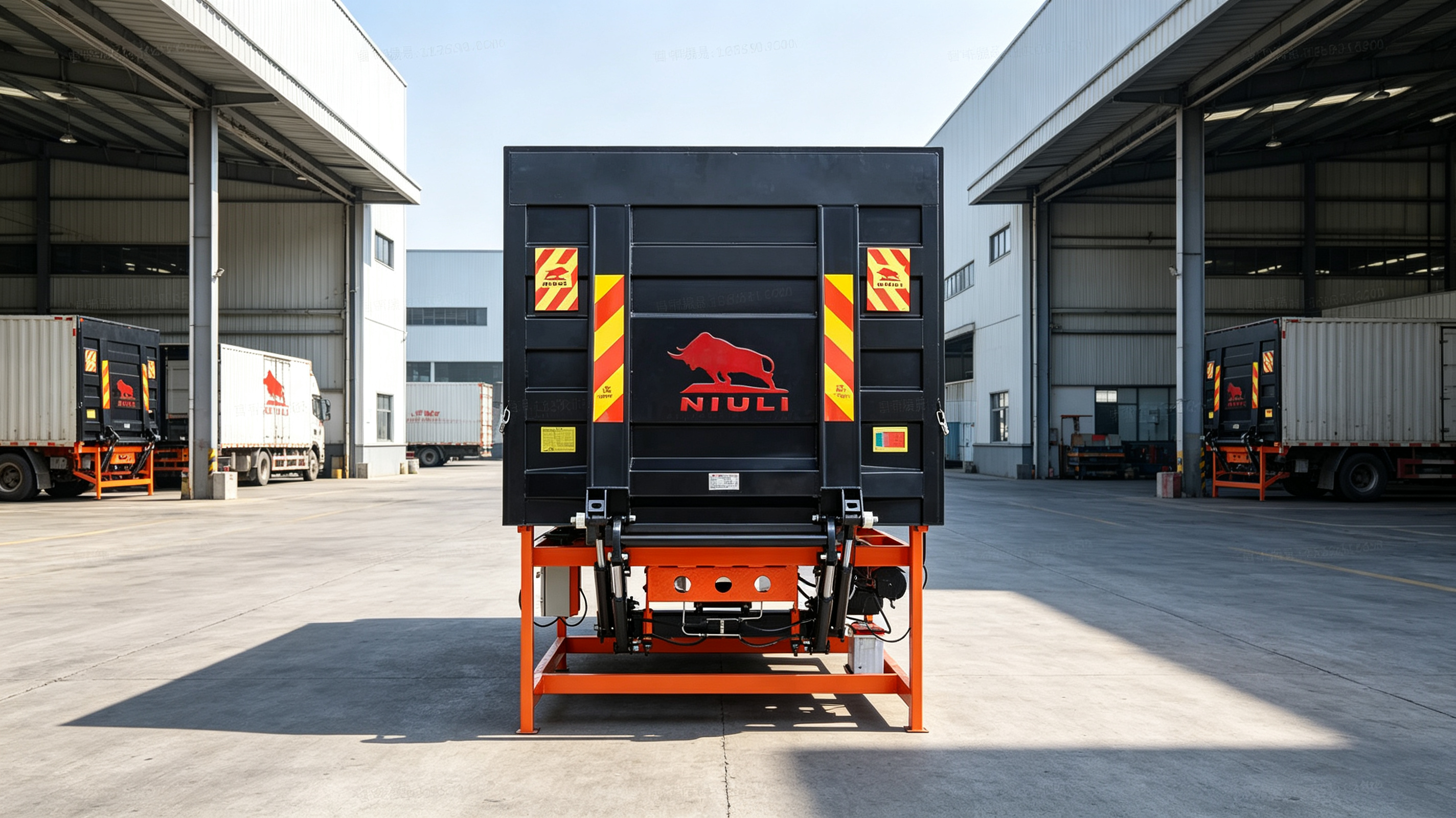

This design gives one worker the power to move loads that would otherwise need several people or a machine. A box truck with tail lift can handle pallets, roll cages, and bulky equipment with a few button presses.

The Main Types and Their Moving Parts

Not every tail lift moves in the same way. The mounting style and folding action change how the platform behaves, and each type suits a different job.

Cantilever units are the most common on the road because they balance capacity and cost well. Column lifts keep the platform horizontal the whole way up, which matters when goods must stay stable. Retractable models disappear under the chassis, freeing up rear access for dock work. Folding designs win on compactness.

Lifting capacities span a wide range. Established makers offer models from around 300kg for parcel vans up to 15,000kg for heavy freight, so the right unit exists for nearly every load profile.

Why the Hydraulic Design Matters for Safety and Durability

The parts doing the hard work take a beating every day, so build quality directly affects how long a Truck Tail Lift lasts and how safely it runs.

Key components worth understanding:

• Cylinders and rods: Chrome-plated rods resist rust and wear. On external cylinders, this finish protects against weather and road grime that would otherwise pit the surface.

• Load-bearing structures: High-strength steel plate and forged steel handle repeated stress without cracking. Forged parts are denser and tougher than cast ones.

• Safety cut-offs: A pressure cut-off valve stops the system if it exceeds safe limits, protecting both the operator and the load.

• Power unit: The pump, motor, and reservoir make up the heart of the system. A well-designed unit runs longer between service intervals.

Optional add-ons extend safety further. Anti-slip platform surfaces, side guard rails, overload protection, and remote controls all reduce risk during loading. Because these features integrate into the base design, operators can spec a lift to match their exact working conditions.

Choosing Among Truck Tail Lift Manufacturers

The mechanics matter, but so does the company building them. When comparing options, weigh a few practical factors.

Experience and track record. A supplier with decades of design and production history has already learned where a lift takes the hardest hits. That knowledge shows up in more durable products. Some established truck tail lift manufacturers, such as Niuli, have built commercial vehicle lifts since 2000 and export to more than 120 countries.

Range and customization. Choose a maker with a broad model lineup if your fleet handles varied loads. A single 600kg parcel lift and a 3,000kg construction lift come from very different specs. Suppliers that offer custom builds on proven platforms give you a tailored fit without the risk of an untested design.

Installation and parts. Bolt-on bracket systems let a workshop fit a lift quickly, often turning a truck around in a single day. Competitively priced genuine parts and long service intervals keep total operating costs low over the years.

Choose a specialist manufacturer over a general supplier if uptime and long-term reliability rank above upfront price. For occasional light-duty use, a simpler folding unit from a broad-range maker may serve you well enough.

Frequently Asked Questions

What powers a truck tail lift?
Most tail lifts run on hydraulics driven by an electric motor and pump, drawing power from the vehicle's battery. The battery recharges through the alternator while the engine runs, so the lift stays ready for repeated use throughout a shift.

How much weight can a tail lift carry?
Capacities typically range from about 300kg for small parcel vans up to 15,000kg for heavy freight vehicles. The safe working load is set by the manufacturer and marked on the platform, and it should never be exceeded.

What is the difference between a cantilever and a column tail lift?
A cantilever lift swings the platform up in an arc and tilts it to reach the ground, making it versatile for mixed deliveries. A column lift slides the platform straight up two rear posts while keeping it level, which suits precise or delicate loading.

How often does a tail lift need servicing?
Service intervals depend on use, but regular checks of hydraulic fluid, seals, and safety cut-offs are essential. A well-built power unit and durable components extend the time between services and lower long-term maintenance needs.

Can a tail lift be fitted to any truck?
Many lifts use bolt-on brackets that suit a wide range of vans and trucks, and reputable makers offer models sized for everything from urban delivery vehicles to heavy freight trucks. Matching the lift's capacity and mounting style to the vehicle is the key step.

Bringing It All Together

A tail lift is a straightforward piece of engineering doing a demanding job. Understanding the hydraulic chain, the main platform types, and the components that drive safety helps you spec, operate, and maintain one with confidence. Whichever style fits your fleet, the payoff is the same: faster loading, less manual strain, and fewer injuries on the ground. To recap, a truck tail lift uses a battery-driven pump to pressurize hydraulic fluid, which extends pistons that raise a platform; the type you pick—cantilever, column, retractable, or folding—should match your loads and access needs, and the maker you choose should offer proven durability, a suitable capacity range, and easy installation.
